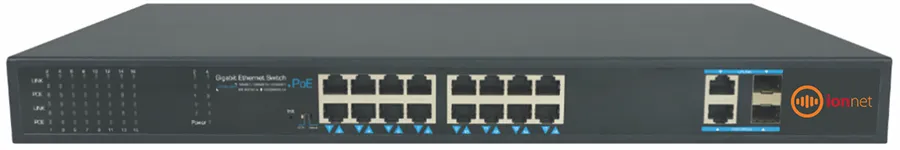

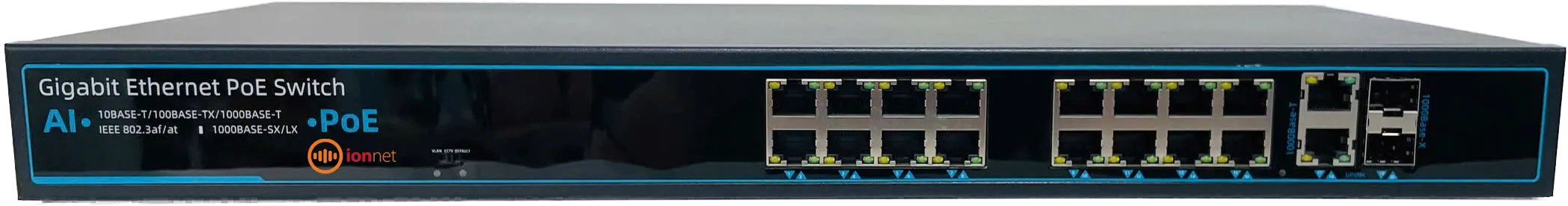

10/100/1000Mbps 16+4 Port 350W PoE Switch



IGS-2016G1-350

Description

IGS-2016G1-350 is a compact 16 port PoE switch, with 16ports supporting 10/100/1000Mbps, 2 ports supporting 10/100/1000 Mbps, 2port Gigabit SFP Auto-negotiation and Auto-MDI/MDIX, The 16 POE ports can automatically detect and provide power for any connected 802.3at Powered Device (PD), such as VOIP phones, IP Cameras, All POE ports support the IEEE802.3at standard, with a maximun output of 30w each port.

Applications

  • Security Monitoring System
  • Communications industrial
  • Transportation industrial
  • Multimedia Network Teaching System
  • Medical Monitoring Display System
  • Industrial Automation Control System
  • Banking, securities, nancial information display system
  • Remote Network Server Monitoring
  • Department Store Security
  • Casino Security
  • Hospitals, Airports and banks
  • School Campuses

Feature

  • 16x 10/100/1000Mbps downlink PoE Ethernet Ports, 2x 10/100/1000Mbps uplink Ethernet Ports and 2x 1000Mbps uplink SFP Ports;
  • Supports port auto-flip (Auto MDI/ MDIX);
  • Each of 16 ports all support IEEE802.3at;
  • Maximum power per port: 30W;
  • Maximum PoE power: 350W;
  • Adopts store-and-forward architecture;
  • Built-in 1U rack power supply series, easy installation;

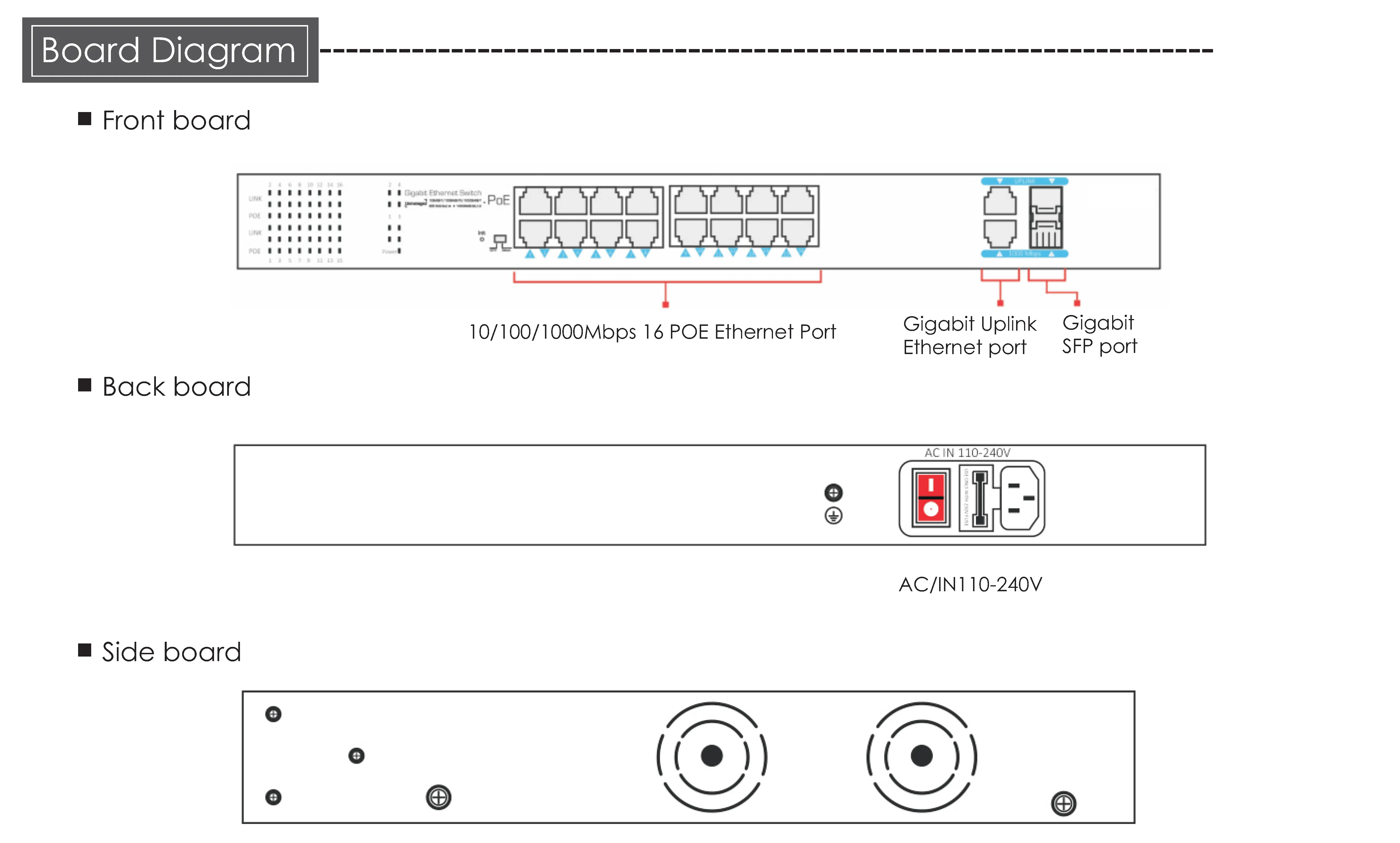

Board Diagram

igs 2824g 450 3 board diagram application result

Plug Producing Method

Instruments to be used: wire crimper, network tester. Wire sequence of RJ45 plug should conform with EIA/TIA568A or 568B;
1) Please remove 2cm long the insulating layer, and bare 4 pairs UTP cable;
2) Separate the 4 pairs UTP cable and straighten them;
3) Line up the 8 pieces of cables per EIA/TIA 568A or 568B;
4) Cut off the cables to leave 1.5cm bare wire;
5) Plug 8 cables into RJ45 plug, make sure each cable is in each pin;
6) Use the wire crimper to crimp it;
7) Repeat above 5 steps to make the another end;
8) Use network tester to test the cable if it works;

igs 2824g 450 4 plug producing method result.webp

Note:

  1. When choose RJ45 make sure if one end is EIA/TIA568A, the other end should also be EIA/TIA568A.
  2. When choose RJ45 make sure if one end is EIA/TIA568B, the other end should also be EIA/TIA568B.

Specification

ItemDescription
PowerPower Adapter Voltage110 – 240V AC
Consumption350W
Network Connector Networt Port1~16 Port: 10/100/1000Mbps, 1~16: POE Ethernet Port

Uplink Port: two Ethernet 1000Mbps, two SFP 1000Mbps



Transmission Distance AA


1~16 Port: 0~100m
SFP: depends on the optical module



Transmission Medium


Cat5/5e/6 standard network cable
Network
Switch



Network Standard


IEEE 802.3, IEEE 802.3u, IEEE 802.1ab, IEEE 802.3x



Switching Capacity


22Gbps



Packet Forwarding Rate


14Mpps



MAC Table


4K
Power Over Ethernet



POE Standard


IEEE 802.3at



POE Power Supply Type


End-Span(1/2+;3/6-)



PoE Power Consumption


at=30W(every port)
LED Status Indicator VLAN/Ext end



POE Ethernet LED Indicator


Power: 1 red light indicates
that the power normal work
POE: 16 yellow lights indicate that the POE is power on
Ethernet: 20 green lights indicate that the Ethernet link and act;
Environmental



Working temperature


0℃ ~ 55℃



Relative Humidity


20 ~ 95%



Storage temperature


-20℃ ~ 70℃
Mechanical



Dimension (L x W x H)


440 mm *290 mm *45mm



Color


Black



Weight


3385g
Stability



MTBF


>30000h



Specification change will not be noticed.
